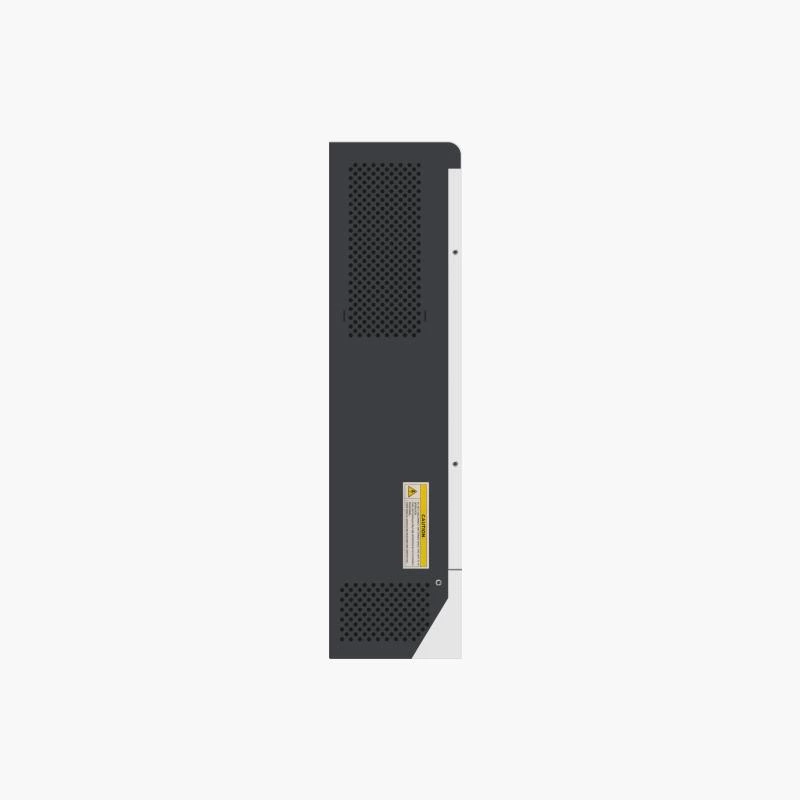

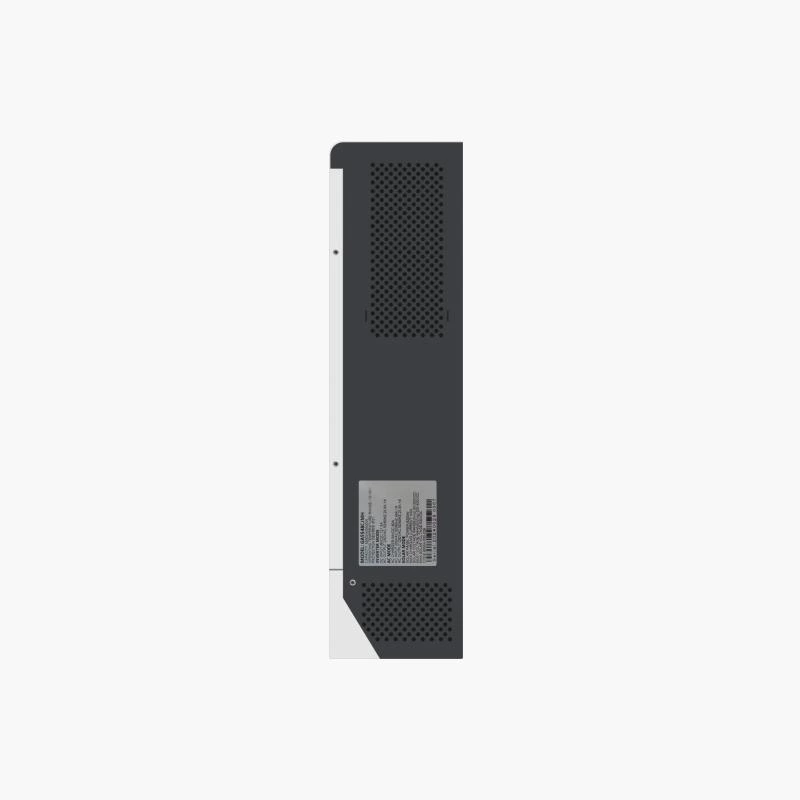

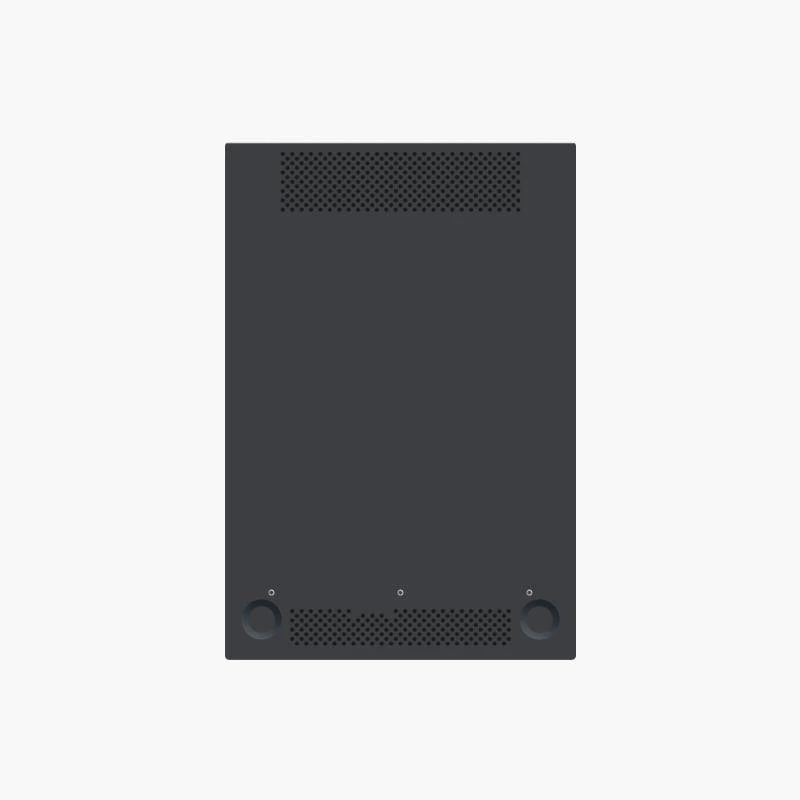

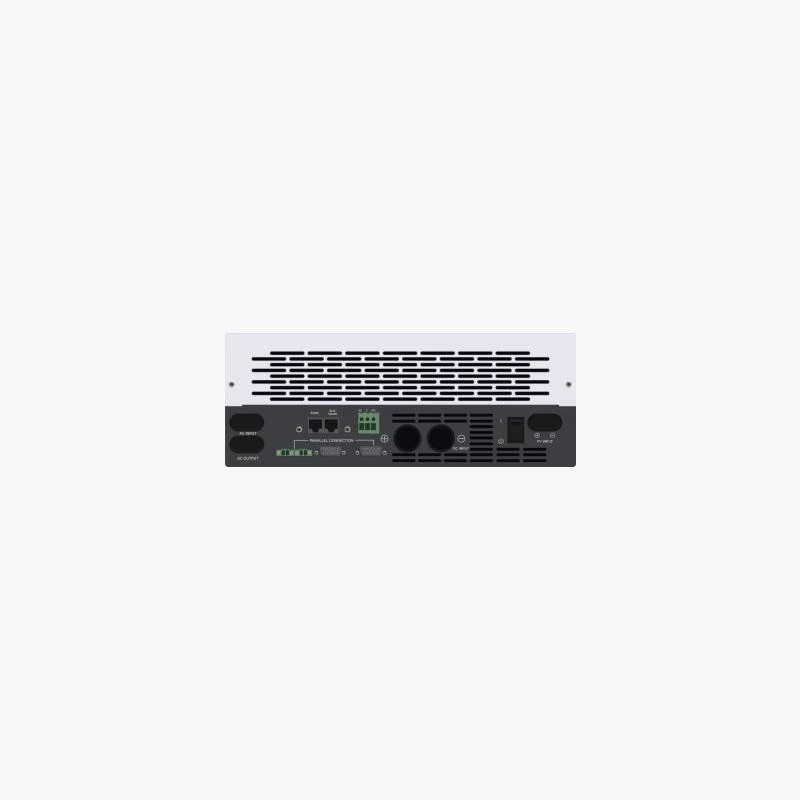

5.5/6.2kW EU Version Voltage Single Off and Hybrid Inverter
1. Energy saving and power saving.
2. Support battery-free operation.
3. Up to 9 units can be connected in parallel.
4. Intelligent BMS manages batteries.
5. WlFl communication, monitoring at any time.
6. Battery automatic restart function.
7. Intelligent allocation of working modes.
8. Adjustable charging voltage.
9. Compact body design.
10. Battery reverse connection protection.
kevolt's online shop：www.greensystem.en.alibaba.com / www.kevolt.en.alibaba.com
Why Choose Our Products?
1. Energy saving, environmental protection,electricity saving, cost saving.
2. Support working without battery, reducesolar system cost.
3. Parallel function up to maximum 9units.
4. Intelligent BMS accurately outputsvoltage and manages lithium batteries.
5. External WlFl communication,monitoring at any time.
6. Automatic battery restart function,convenient battery charging.
7. Intelligent distribution of solarpanelmains/batterypower shares.
8. The charging voltage can be adjusted tomeet different battery charging.
9. Compact body design, easy to installand transport.
10. Battery reverse connection protectionwith fuse switch, safer installation.
| Model | KV-5.5K-HP/OP | KV-6.2K-HP/OP |
| Input Formation | L+N+PE | |
| AC Input | 220/230/240VAC | |
| Input Voltage Range | 90~280VAC±3V(Normal Mode)185~264VAC±3V (UPS Mode) | |
| Frequency | 50/60Hz(Adaptive) | |
| Rated Power | 5500W | 6200W |
| Output Voltage | 208/220/230/240VAC+5% | |
| Output Frequency | 50/60Hz±0.1% | |
| Max. Number of Parallel | 9Pcs | |
| Transfer Time(Adjustable) | 10ms for Computer Equipment,20ms for Household Equipment | |
| Peak Power | 11000VA | 12400VA |
| Overload Ability | Battery Mode : 21s@102%~110% load 10s@110%~130% load 3s@130%~150% load 400ms@>150% load | |
| Peak Efficiency(Battery Model) | >94% | |
| Rated Voltage | 48VDC | |
| Constant Charging Voltage | 56.4VDC | |
| Float Charging Voltage | 54VDC | |
| PV Charging Method | MPPT | |
| Max PV Input | 5500W | 6200W |
| MPPT Tracking Range | 90~450VDC | |
| MAX PV Input Voltage | 500VDC | |
| MAX PV Charge Current | 100A | 120A |
| MAX AC Charge Current | 100A | 100A |
| MAX Charge Current | 100A | 120A |
| LCD | Can display operating mode/load/input/output | |
| Communication with BMS | RS232 / RS485 | |
| Expansion Slot Communication Interface | Lithium Battery BMS Communication Card,WIFI 2×5PIN/Pitch2.54mm | |
| Operating Temperature | 0℃~40℃ | |
| Storage Temperature | -15℃~60℃ | |
| Ork Altitude | ≤1000m, If 1000m<,Rate power will lower, MAX 4000m, Refer | |
| Noise | <50dB | |
| L*W*H | 315*115*465mm | |
| Net Weight | 10.85Kg | |
