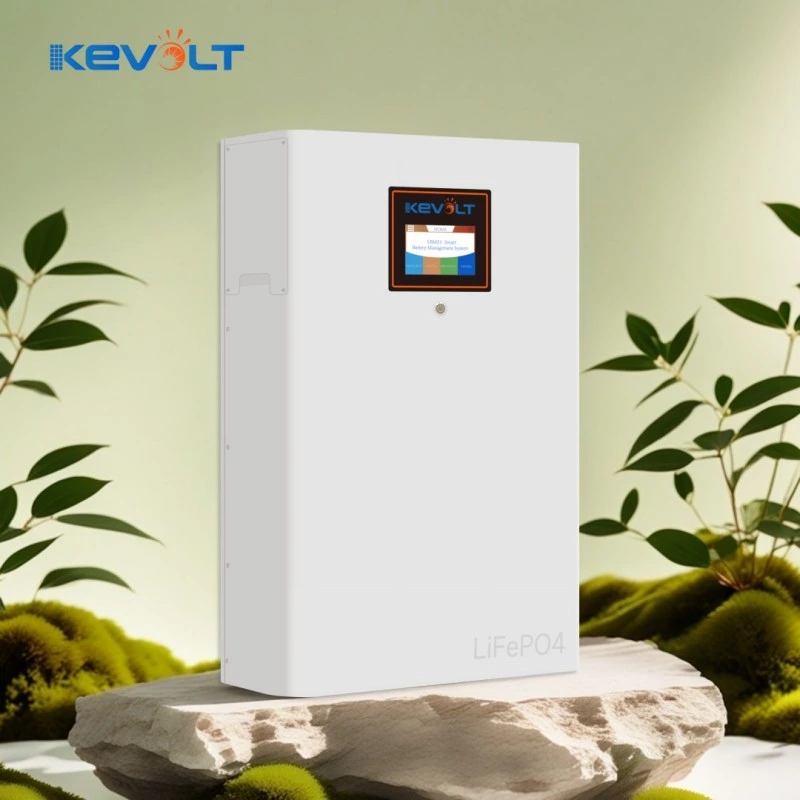

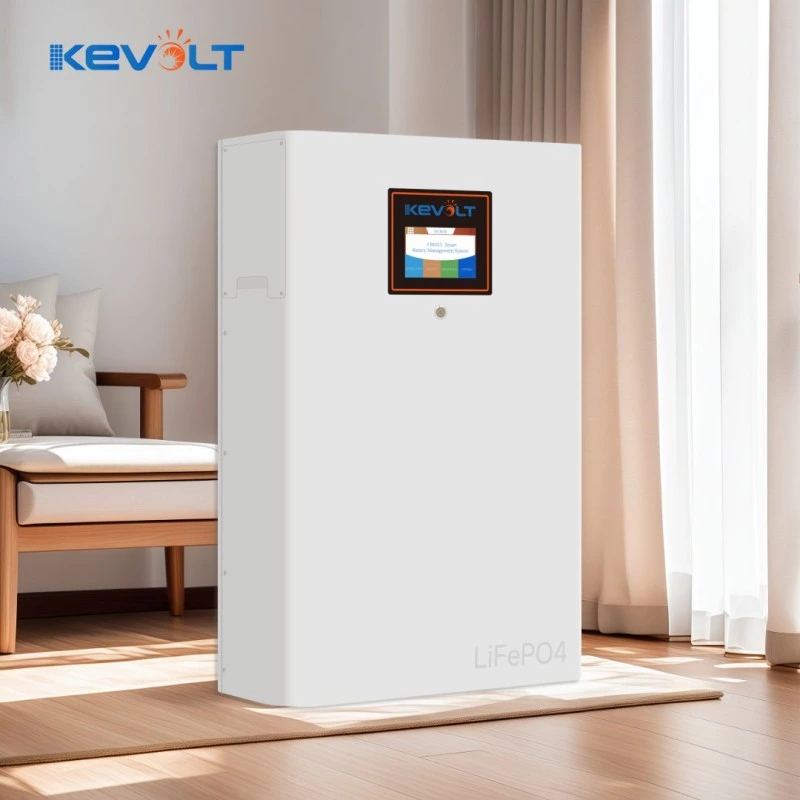

51.2V 100Ah Wall Mounted Battery
1. 10-year product warranty.
2. Grade A battery, 6000 cycles.
3. Independent battery compartment reinforcement.
4. Laser welding and PCB process.
5. Intelligent BMS.
6. Color touch screen.
7. IP54 rating, suitable for harsh conditions.
8. Wall-mounted, easy to install.
9. Compatible with 95% inverters.
10. 15 devices in parallel.
11. OEM/ODM available.
kevolt's online shop：www.greensystem.en.alibaba.com / www.kevolt.en.alibaba.com
Why Choose Our Products
1. Our products are guaranteed for 10 years, because we are absolutelyconfident in our products!
2. Adopts the new grade A lithium iron phosphate cell, up to 6000 Cycles@ 0.5C 80%DOD, can scan the QR code official website to verify theauthenticity, trace the source!
3. Independent battery compartment structure design, triple structurereinforcement, to achieve super stability.
4. Advanced technology such as laser welding and PCB process, simple.
beautiful and durable.
5. Equipped with intelligent BMS, real-time monitoring voltage, current,temperature, protect voltage, current stability, prevent short circuit.overcharge and overdischarge.

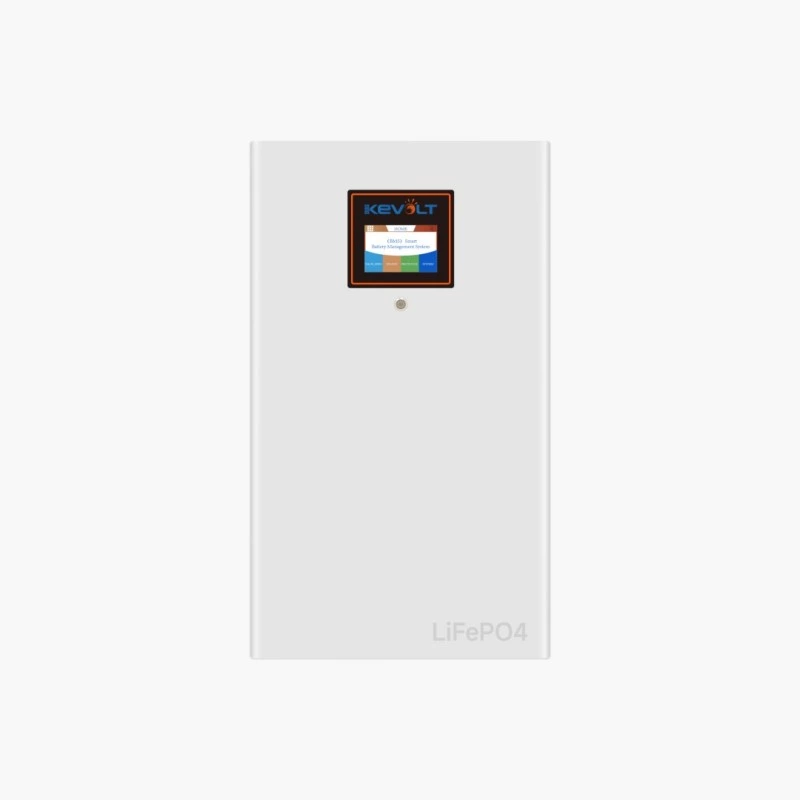

6. Uses 3.5-inch touch screen, larger screen, better water and dustresistance and longer service life.

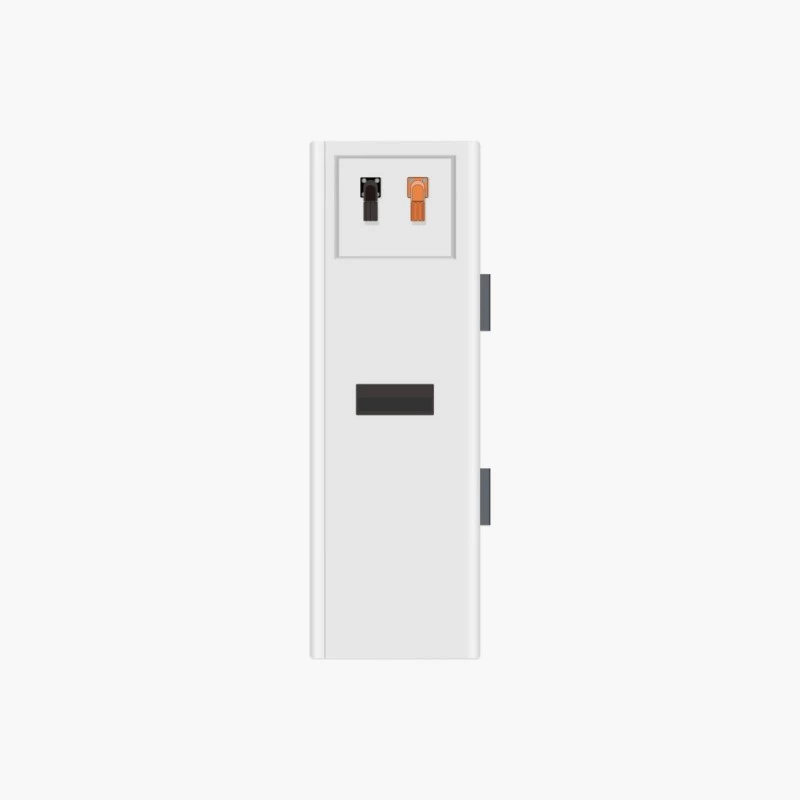

7. The built-in connector design greatly improves security, protection, andaesthetics.

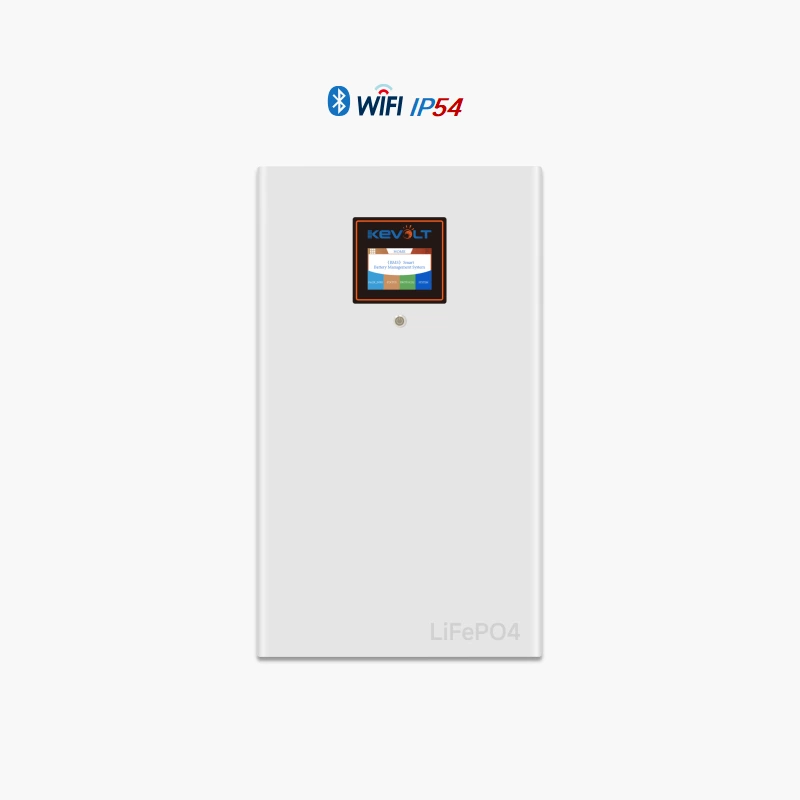

8. With lP54 protection rating, it can easily handle the harsh workenvironment.

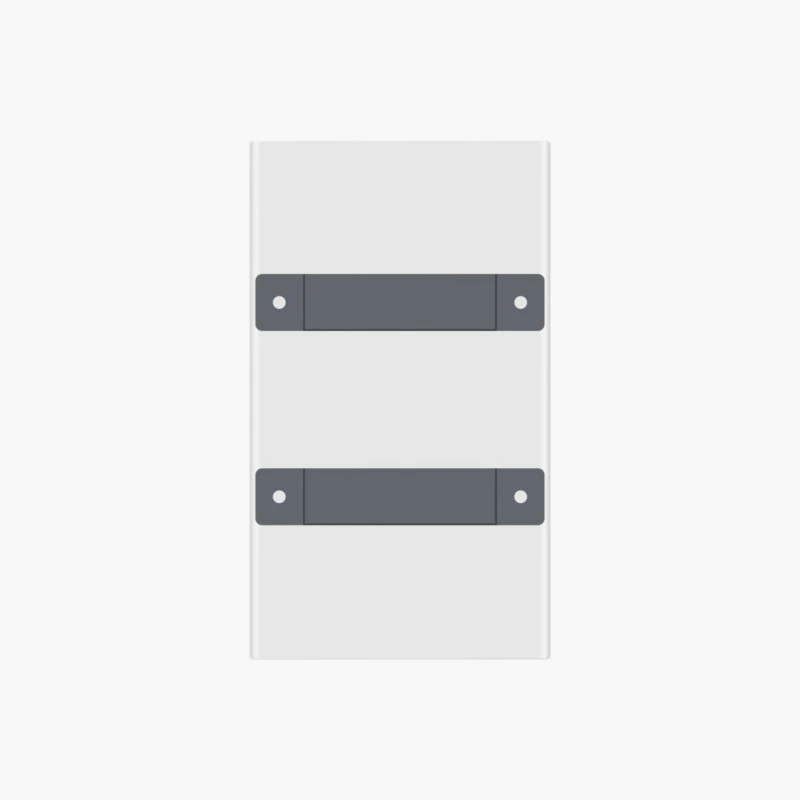

9. Wall-mounted design, easy to install.
10. Compatible with 95% of inverter brands.
11. Supports 15 devices in parallel with a maximum total capacity of76.8kWh.
12. OEM/ODM supported.
| Model Capacity | KVP100Ah-LV |
| Battery Type | LiFePO4 |
| Capacity Energy | 5.12kWh |
| Capacity（Ah） | 100Ah |
| Battery Pack Type | 16S1P |
| Suggested SOC | 20~100% |
| Nominal Voltage | 51.2V |
| Operation Voltage | 46.4~57.6V |
| Max Charging/Discharging Current | 50A |
|
Max Charge Current
|
80A |
|
Max Discharge Current
|
80A |
| Parallel Quantity | Max 15 Units |
|
Cycle Life
|
6000 Cycles @25℃, 80%DOD
|
|
Operating Temperature
|
Charge: 0~50℃, Discharge: -20~60℃
|
| Dimensions | 633*353*194mm |
| Net Weight | 46kg |
| IP Grade | IP54 |
| Installation Method | Wall Mounted |
| Communication | RS232, RS485, CAN |
| Warranty | 10 Years |
|
Customizable Item
|
Capacity, Panel Pattern, LOGO, Packaging
|
