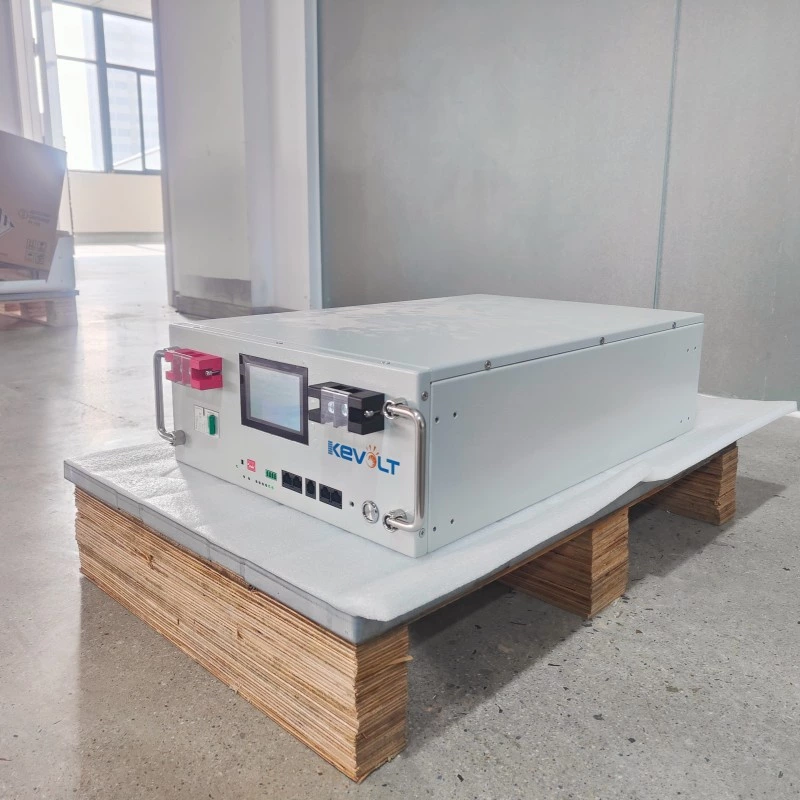

51.2V 100/200/280Ah Modules Rack Battery
1. The product provides a 10-year warranty.
2. Class A battery, up to 10,000.
3. Laser welding, PCB process.
4. Intelligent BMS protection.
5. Touch screen design.
6. Small bracket design.
7. Compatible with 95% brand inverters.
8. Support 15 devices in parallel.
9. Support OEM/ODM.
kevolt's online shop：www.greensystem.en.alibaba.com / www.kevolt.en.alibaba.com
Why Choose Our Products
1. The product provides a 10-year warranty, because we are absolutelyconfident in the product!
2. Using A new grade A lithium iron phosphate cell, max 10000 Cycles @0.5C 80%D0D, you can scan the QR code official website to verify thetrue or false, trace the source!
3.Using advanced technology such as laser welding and PCB process,simple, beautiful and durable.
4. Equipped with intelligent BMS, real-time monitoring voltage, current,temperature, protect voltage, current stability, prevent short circuit.overcharge and overdischarge.
5. Touch screen design to achieve better protection and longer servicelife.

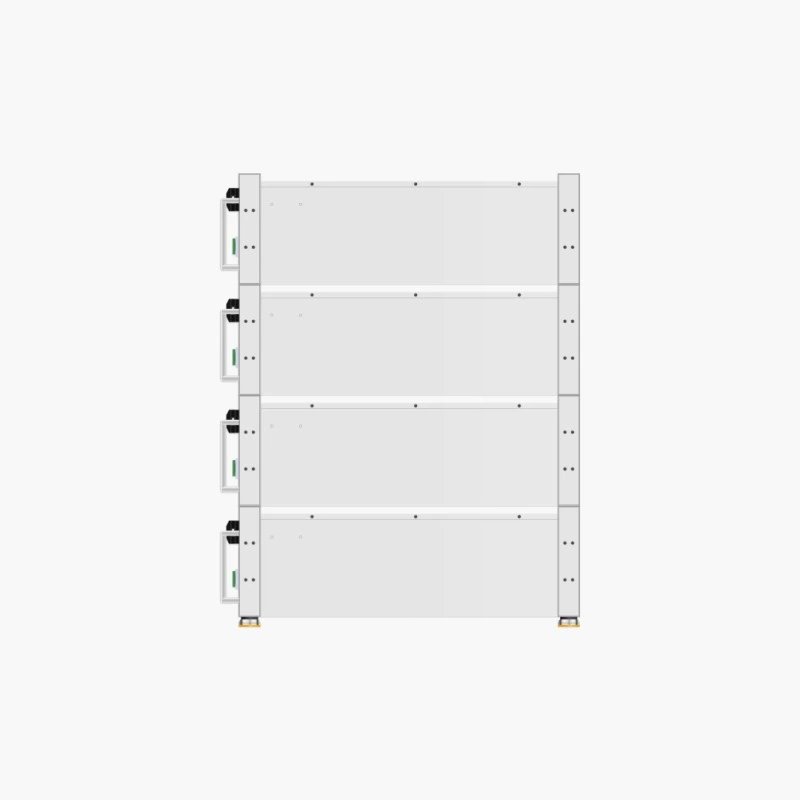

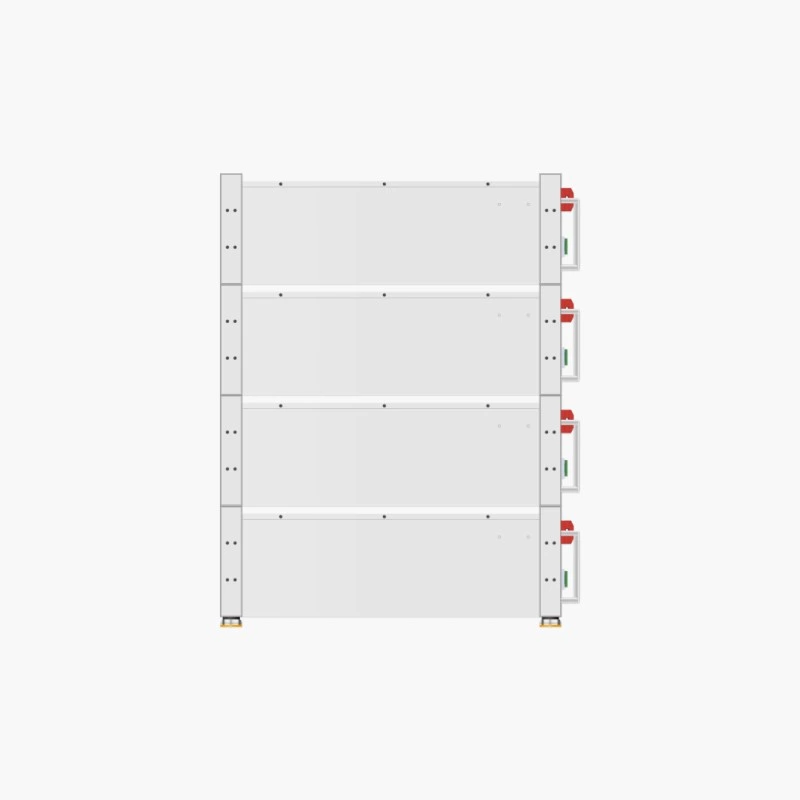

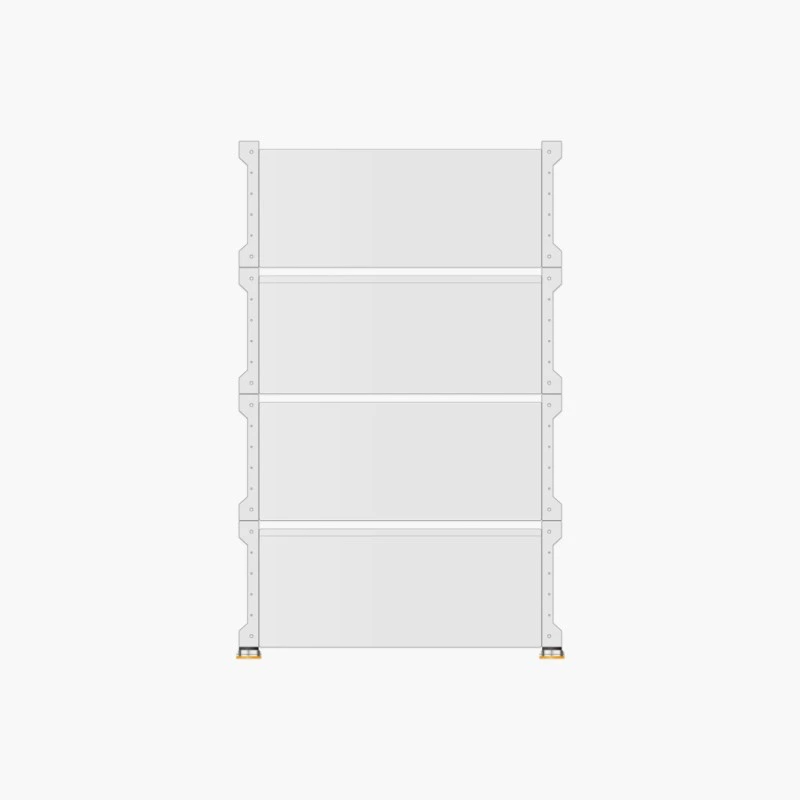

6. Rack-type design, simple installation, space saving.
7. Compatible with 95% of brand inverters.
8. Support 15 devices in parallel with a maximum total capacity of215.04kWh.
9. Support OEM/ODM.
| 51.2V 100Ah/200Ah/280Ah Modules Rack Battery | |||
|
Model
|
KVR100Ah-LV
|
KVR200Ah-LV
|
KVR280Ah-LV
|
|
Battery Type
|
LiFePO4
|
||
|
Nominal Capacity
|
100Ah
|
200Ah | 280Ah |
|
Nominal Voltage
|
51.2V
|
||
|
Nominal Energy
|
51.2kWh
|
10.24kWh | 14.33kWh |
|
Suggested SOC
|
20~100%
|
||
|
Operating Voltage
|
46.4~57.6V
|
||
|
Suggest Charge/Discharge Current
|
50A
|
80A | 140A |
|
Max Charge Current
|
80A
|
120A | 200A |
|
Max Discharge Current
|
80A
|
120A | 200A |
|
Scalability
|
Max 15 Pcs Park in Parallel
|
||
|
Cycle Life (@25℃, 80%DOD)
|
6000
|
10000 | |
|
Humidity
|
5%-85%
|
||
|
Operating Temperature
|
Charge: 0~50℃, Discharge: -20~60℃
|
||
|
Weight
|
39.5kg
|
78kg
|
102.2kg
|
|
Dimensions
|
567*355*150mm
|
600*381*240mm
|
745*381*240mm
|
|
Installation Method
|
Rack Mounted
|
||
|
IP Grade
|
IP21
|
||
|
Communication
|
RS485, RS232,CAN
|
||
|
Warranty
|
10 Years
|
||
