PRODUCT

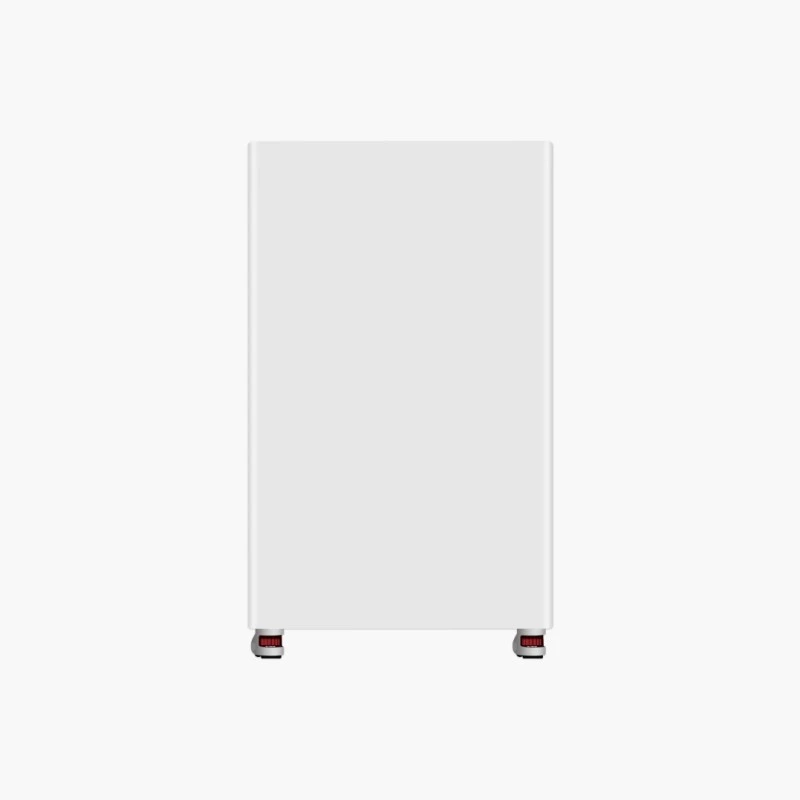

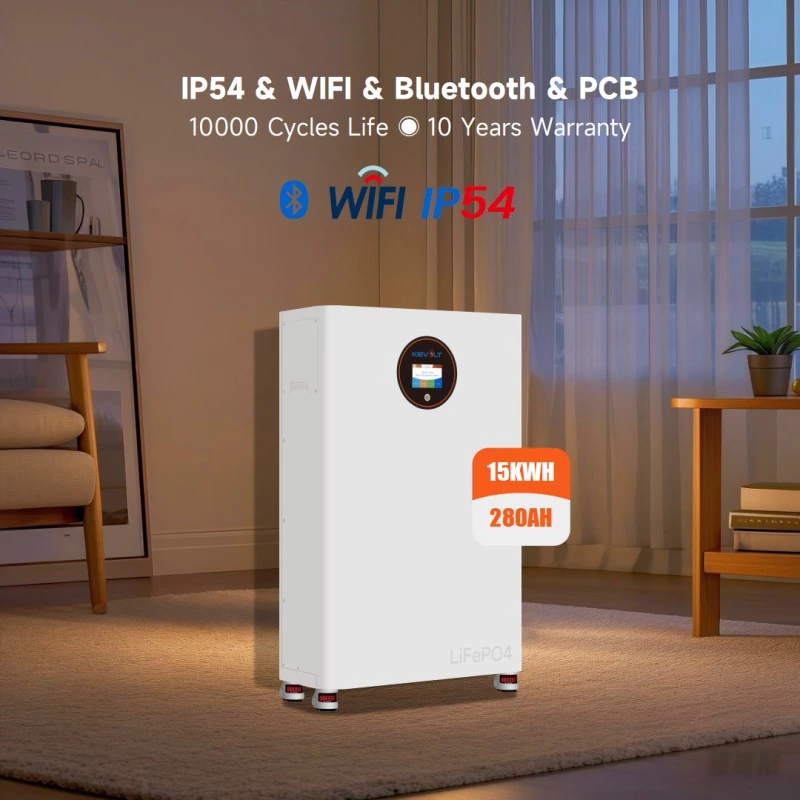

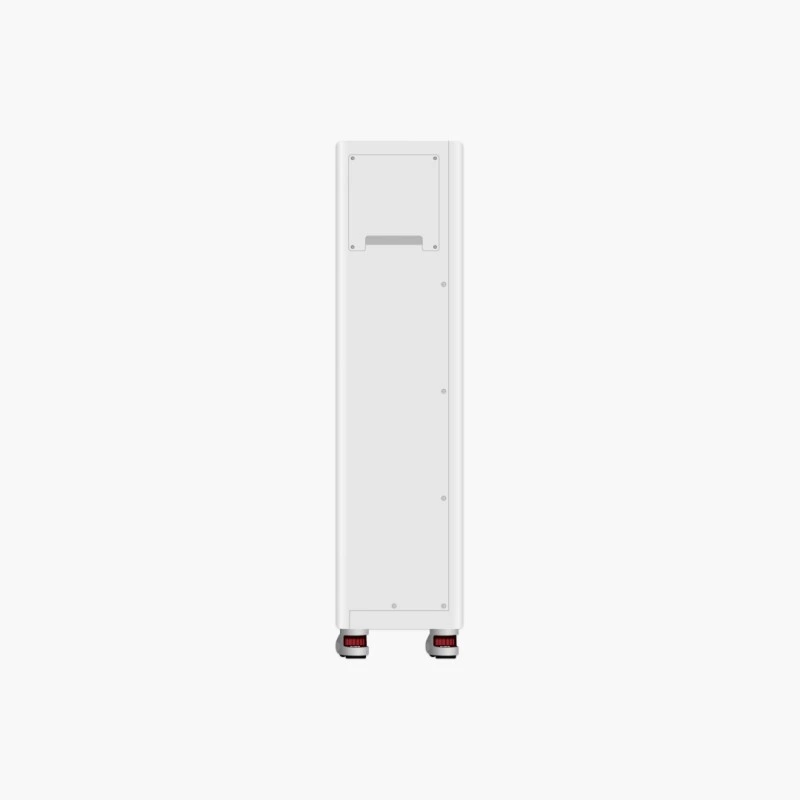

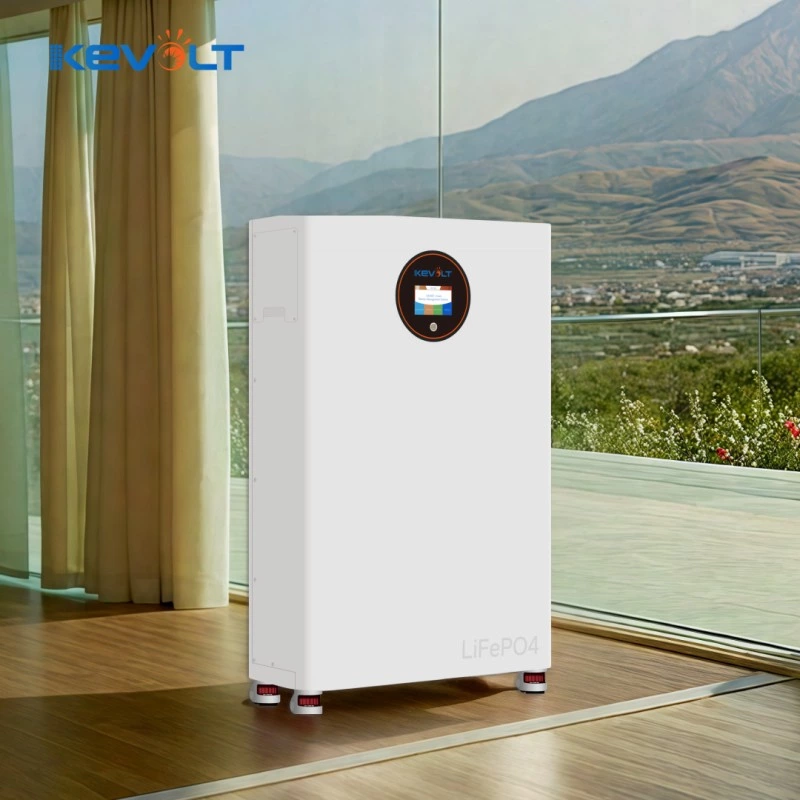

51.2V 280Ah/314Ah Floor Mounted Battery
1. 10-year product warranty.
2. Grade A battery, up to 10,000 cycles.
3. Independent battery compartment reinforcement.
4. Laser welding and PCB process.
5. Smart BMS, support wifi Bluetooth.
6. Color touch screen.
7. IP54 rating, suitable for harsh conditions.
8. Floor installation, with universal wheels.
9. Compatible with 95% of inverters.
10. 15 devices in parallel.
11. OEM/ODM available.
kevolt's online shop：www.greensystem.en.alibaba.com / www.kevolt.en.alibaba.com
Why Choose Our Products
1. Our products are guaranteed for 10 years, because we are absolutelyconfident in our products!
2.Adopts the new grade A lithium iron phosphate cell, up to 10000Cycles @ 0.5C 80%D0D, can scan the QR code official website to verifythe authenticity, trace the source!
3. Independent battery compartment structure design, triple structurereinforcement, to achieve super stability.
4. Advanced technology such as laser welding and PCB process, simple,.
beautiful and durable.
5. Equipped with intelligent BMS, real-time monitoring voltage, current.temperature, protect voltage, current stability, prevent short circuit,overcharge and overdischarge.
6. Uses 3.5-inch touch screen, larger screen, better water and dustresistance and longer service life.
7. The built-in connector design greatly improves security, protection, andaesthetics.
8. With lP54 protection rating, it can easily handle the harsh workenvironment.
9. Comes standard with Bluetooth and wifi for remote monitoring of yourdevice anytime, anywhere.
10. Floor-to-ceiling design with 360-degree universal wheels for easymovement and installation.
11. Compatible with 95% of inverter brands.
12. Supports 15 devices in parallel with a maximum total capacity of215.04kWh.
13. 0EM/0DM supported
| Floor Mounted Battery | |
|
Model
|
KVP280Ah-LV
|
| Battery Type | LiFePO4 |
| Capacity (Ah) | 280Ah |
| Energy Capacity | 14.33kWh |
|
Suggested SOC
|
20~100%
|
| Normal Voltage | 51.2V |
|
Suggest Charge/Discharge Current
|
140A
|
|
Max Charge/Discharge Current
|
200A
|
|
Parallel Quantity
|
Max 15 Pcs Park in Parallel
|
|
Cycle Life
|
10000 Cycles @25℃, 80%DOD
|
|
Operating Temperature
|
Charge: 0~50℃, Discharge: -20~60℃
|
| Dimension |
537*214*891mm
|
| Weight | 126kg |
|
Installation Method
|
Floor Mounted
|
| Communication Port | RS485, CAN, RS232 |
|
Remote Monitoring
|
Bluetooth and WIFI
|
|
IP Grade
|
IP54
|
| Warranty | 10 Years |
|
Customizable Item
|
Capacity, Panel Pattern, LOGO, Packaging
|
