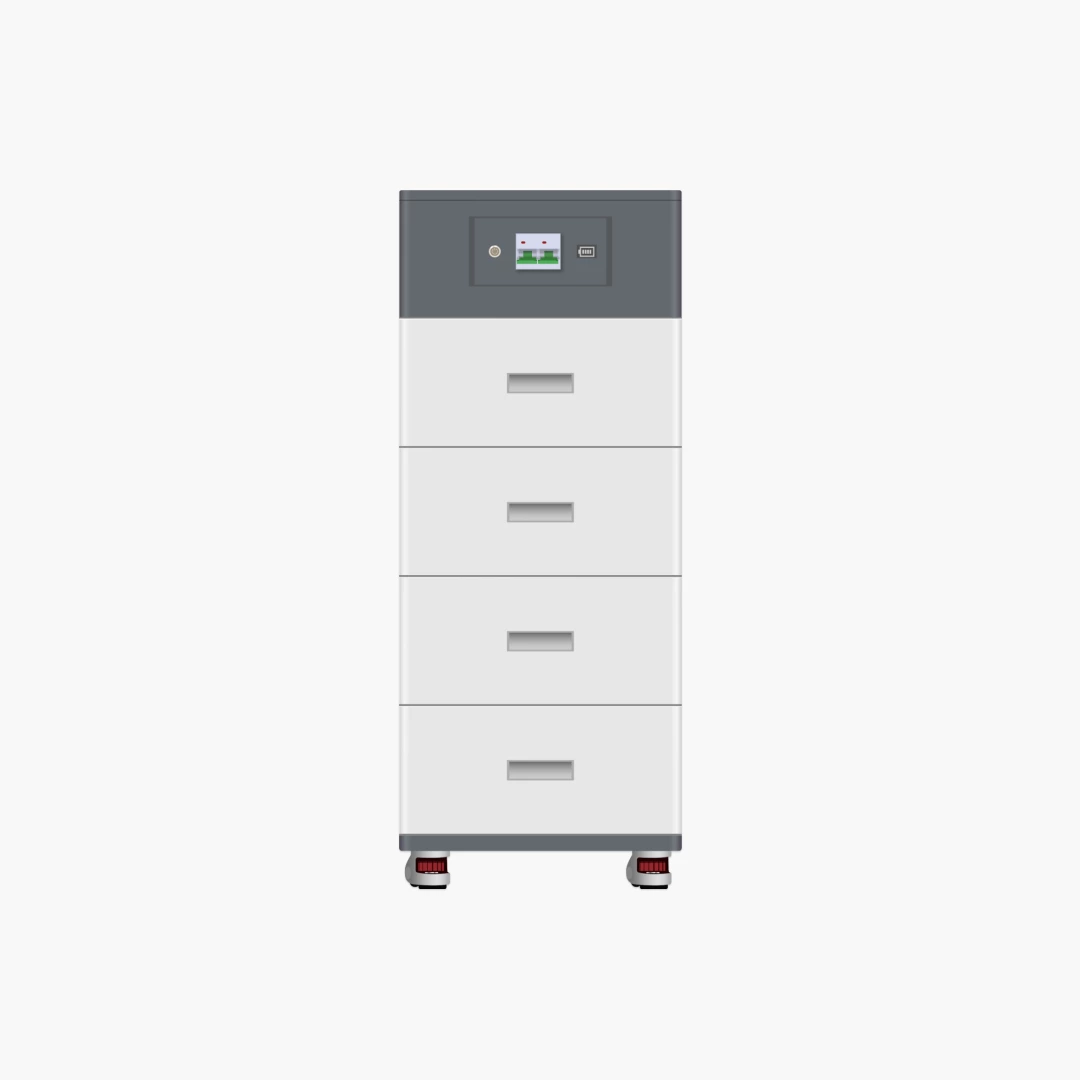

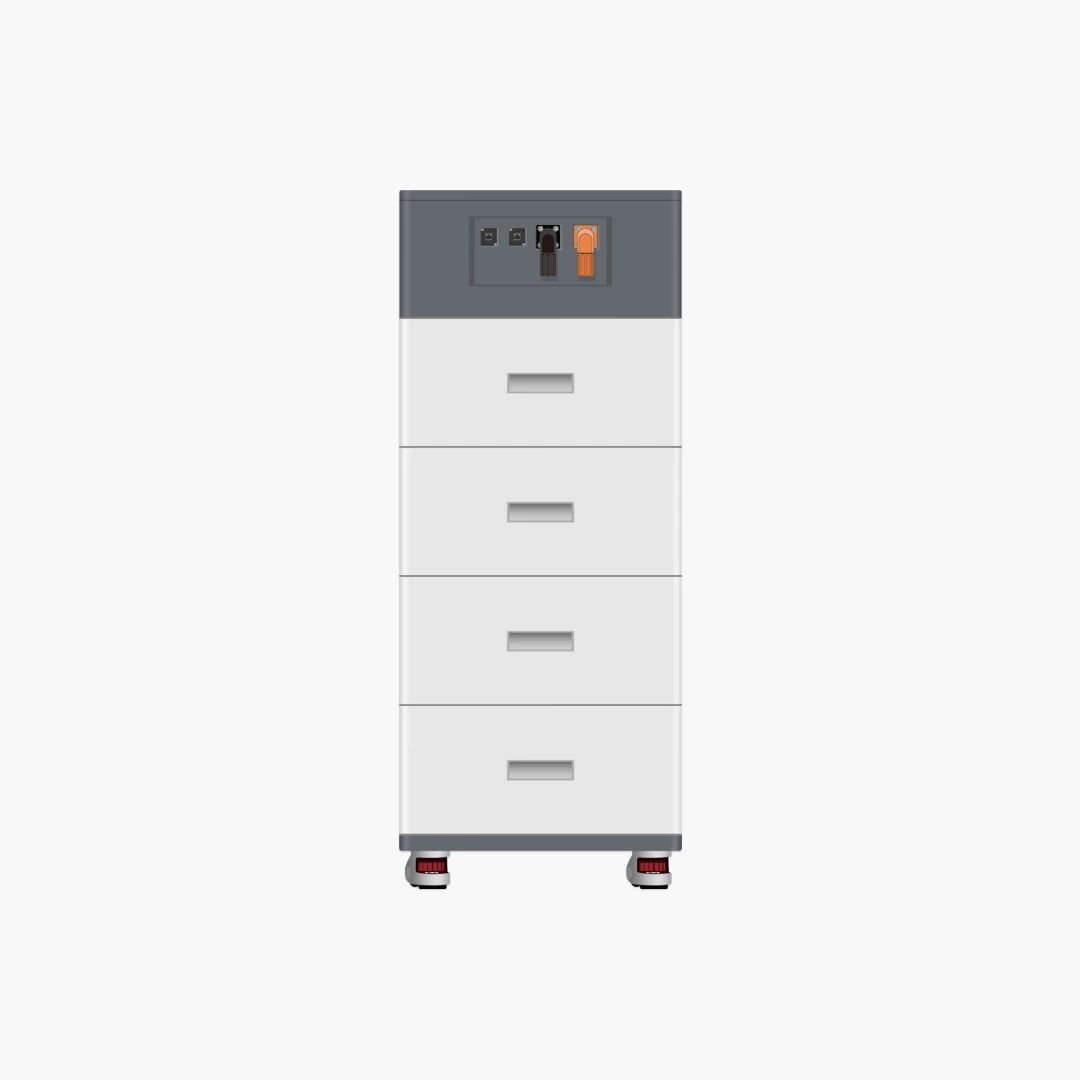

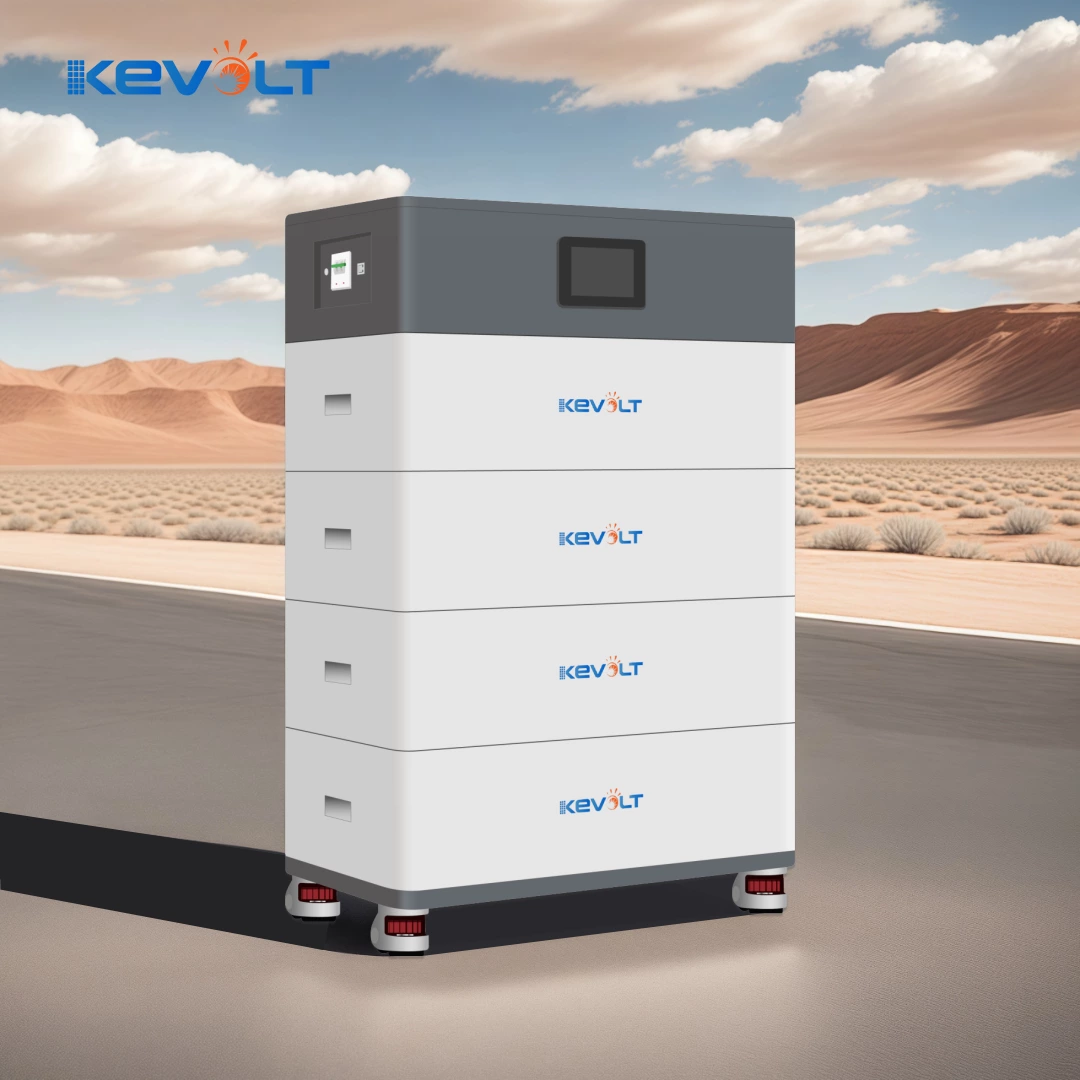

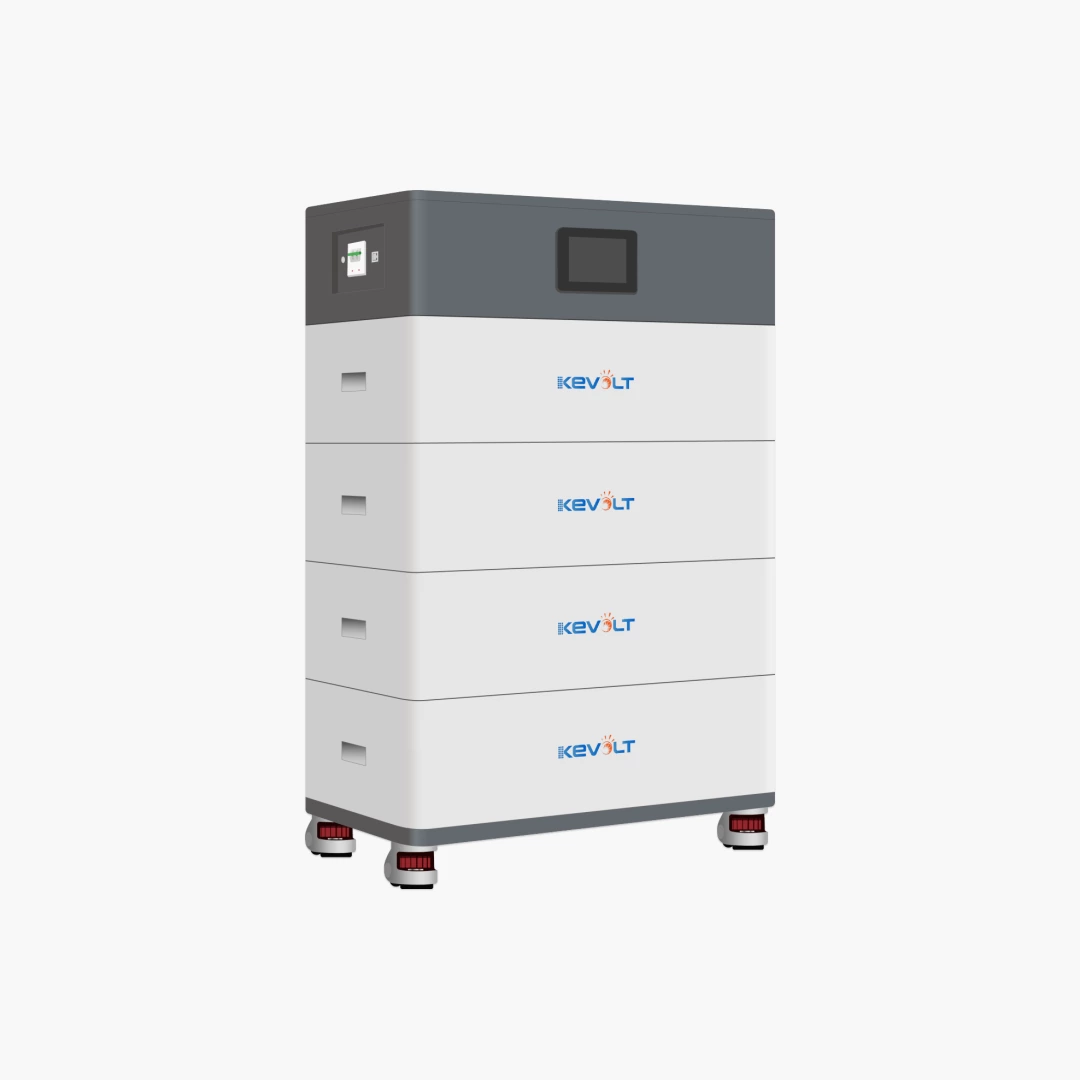

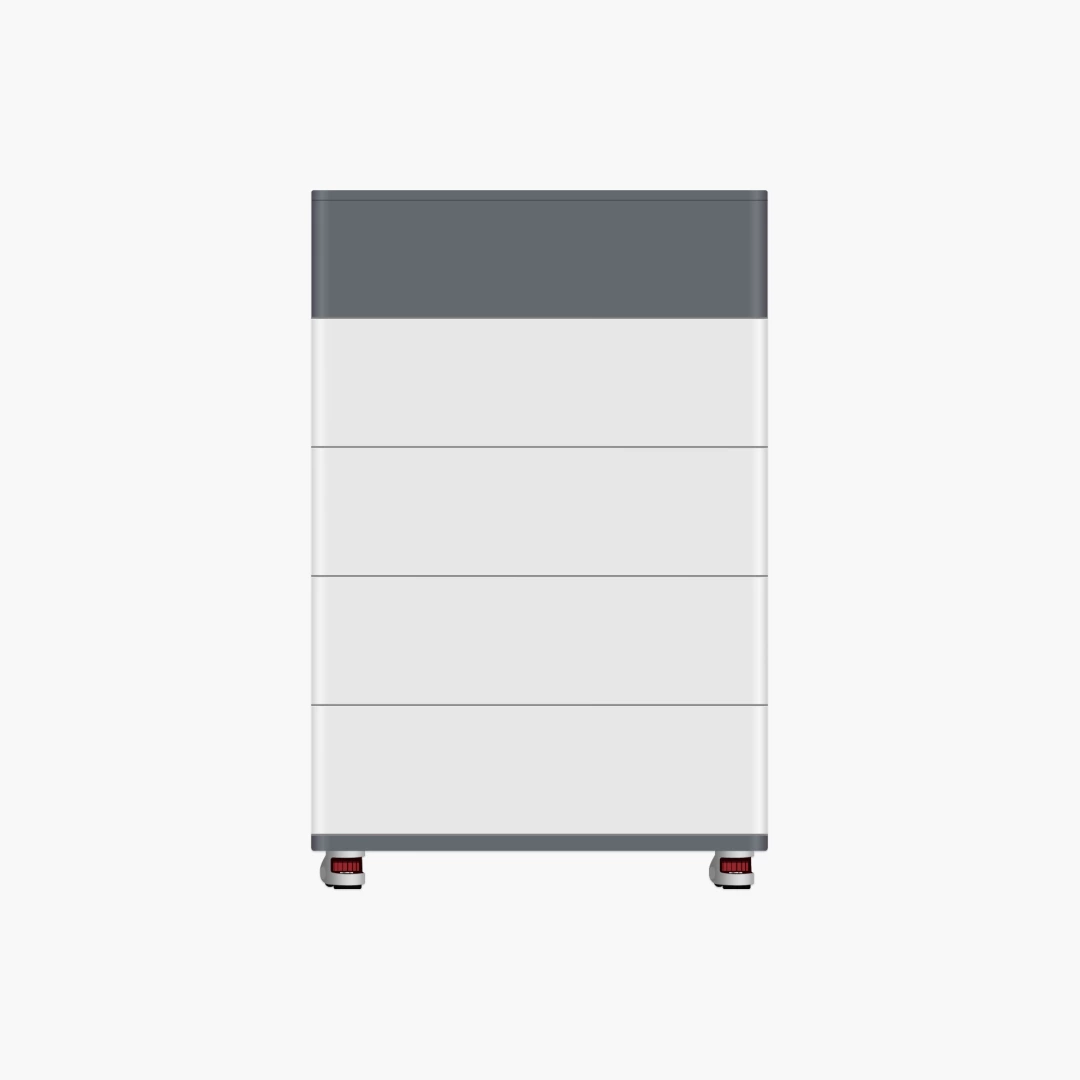

51.2V 100/200Ah Module High Voltage Stacked Battery
1. The product provides a 10-year warranty.
2. A-grade lithium iron phosphate battery, up to 6000 cycles.
3. Independent battery compartment structure.
4. Laser welding and PCB technology.
5. Equipped with intelligent high-voltage BMS protection.
6. 4.3-inch color touch screen.
7. Built-in connector design.
8. IP54 protection level.
9. Configure WlFl to remotely monitor the device.
10. Equipped with 360-degree universal wheels.
11. Compatible with 95% brand inverters.
12. Support 15 devices in parallel.
13. Support OEM/ODM.
kevolt's online shop：www.greensystem.en.alibaba.com / www.kevolt.en.alibaba.com
Why Choose Our Products
1. The product provides a 10-year warranty because we are absolutely confident in the product!
2. Adopting the new A-grade lithium iron phosphate battery, up to 6000 Cycles@0.5C 80%D0D, you can scan the official website QR code to verify the authenticity and trace the source!
3. Independent battery compartment structure design, triple structure reinforcement, to achieve super stability.
4. Adopting advanced technologies such as laser welding and PCB technology, it is simple, beautiful and durable.
5. Equipped with intelligent high-voltage BMS, real-time monitoring of voltage, current, temperature, protection voltage and current stability, prevent short circuit, overcharge and over discharge.
6. 4.3-inch touch screen, larger screen, better waterproof and dustproof performance, longer service life.
7. The connection port adopts a built-in design, which greatly improves safety, protection level and aesthetics, and is easy to install.
8. With IP54 protection level, it can easily cope with harsh working environment.
9. Equipped with WlFl function, you can remotely monitor the device anytime and anywhere.
10. Floor-standing design, equipped with 360-degree universal wheels, convenient for mobile installation.
11. Compatible with 95% brand inverters.
12. Support 15 devices in parallel, with a maximum total capacity of 215.04kWh.
13. Support OEM/ODM.
* If you want to become one of our dealers and get a discount, please contact us now!
| 5.12kWh High Voltage Stacked Battery | |||
| Model | HV51.2V100Ah | ||
| Battery Module | 5.12kWh, 100Ah, 51.2V, 47kg, 680*420*180mm | ||
| Battery Type | LiFePO4 | ||
| Number Of Modules | 4 | 5 | 6 |
| Rated Energy | 20.48kWh | 25.6kWh | 30.72kWh |
| Suggested SOC | 20~100% | ||
| Normal Voltage | 204.8V | 256V | 307.2V |
| Max Charge Current | 50A | ||
| Max Discharging Current | 50A | ||
| Cycle Life | 6000 Cycles @25℃, 80%DOD | ||
| Operating Temperature | Charge: 0~50℃, Discharge: -20~60℃ | ||
| Net Weight (kg) | 215 | 262 | 309 |
| Dimensions (mm) | 680*420*900 | 680*420*1100 | 680*420*1280 |
| Installation Method | Stacked | ||
| Remote Monitoring | WIFI | ||
| IP Grade | IP54 | ||
| Communication | RS232, RS485, CAN | ||
| Warranty | 10 Years | ||
| 10.24kWh HV Stacked Battery | |||
| Model | HV51.2V200Ah | ||
| Battery Module | 10.24kWh, 200Ah, 51.2V, 88kg, 680*500*286mm | ||
| Battery Type | LiFePO4 | ||
| Number Of Modules | 4 | 5 | 6 |
| Rated Energy | 40.96kWh | 51.2kWh | 61.44kWh |
| Suggested SOC | 20~100% | ||
| Normal Voltage | 204.8V | 256V | 307.2V |
| Max Charge Current | 100A | ||
| Max Discharging Current | 100A | ||
| Cycle Life | 6000 Cycles @25℃, 80%DOD | ||
| Operating Temperature | Charge: 0~50℃, Discharge: -20~60℃ | ||
| Net Weight (kg) | 380 | 467 | 555 |
| Dimensions (mm) | 680*500*1344 | 680*500*1360 | 680*500*1916 |
| Installation Method | Stacked | ||
| Remote Monitoring | WIFI | ||
| IP Grade | IP54 | ||
| Communication | RS232, RS485, CAN | ||
| Warranty | 10 Years | ||
