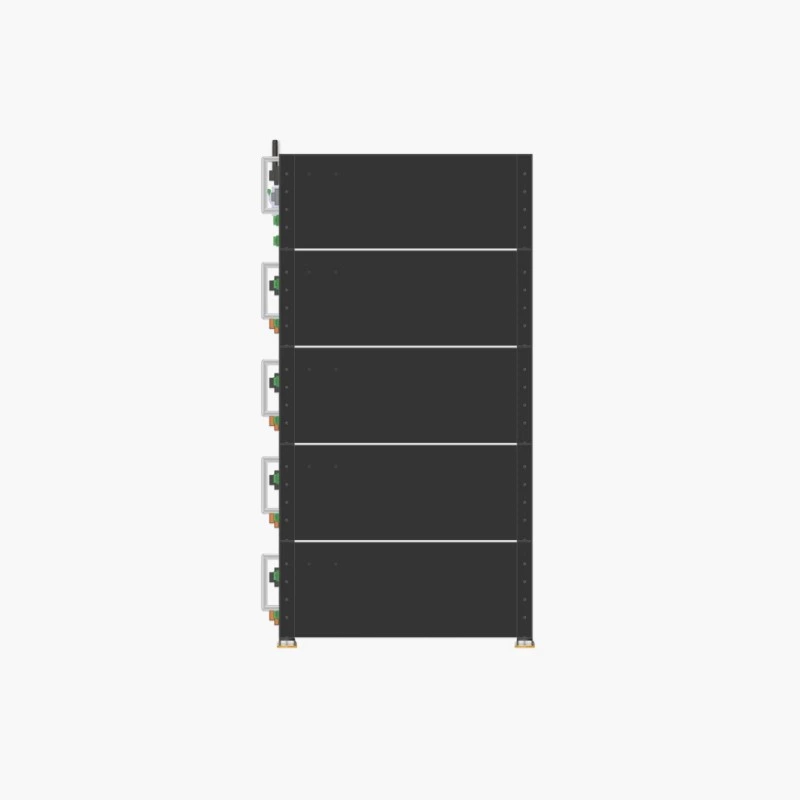

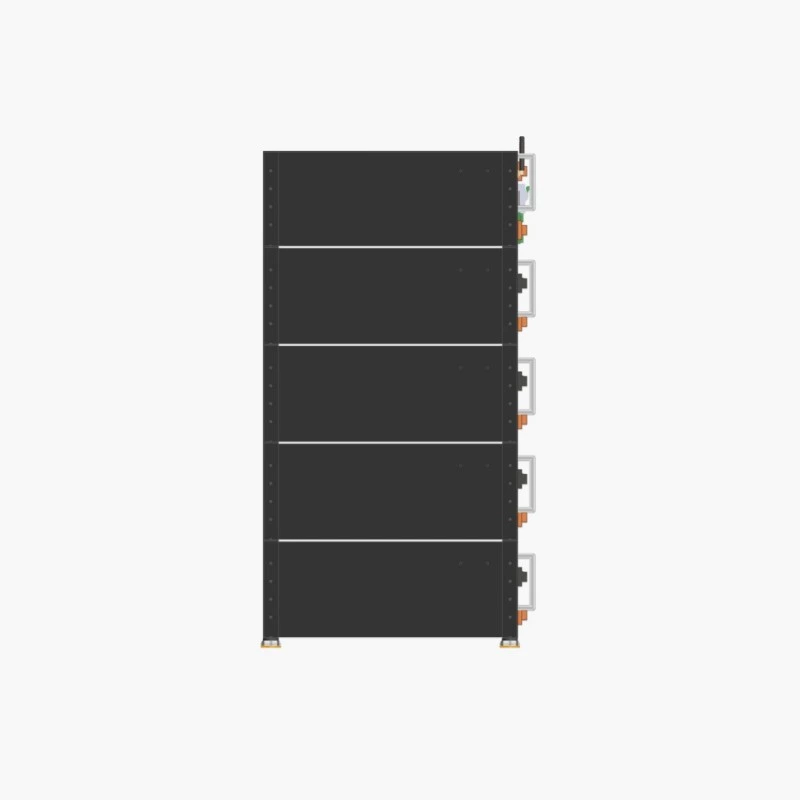

51.2V 100Ah Module High Voltage Rack Battery
1. The product provides a 10-year warranty.
2. Class A battery cells, up to 10,000 cycle life.
3. Independent battery compartment structure design.
4. Laser welding and PCB technology.
5. Intelligent high-voltage BMS protection.
6. 4.3-inch touch screen.
7. Equipped with WlFl, remote monitoring.
8. Rack-mounted design.
9. Compatible with 95% brand inverters.
10. Support 15 devices in parallel.
11. Support OEM/ODM.
kevolt's online shop：www.greensystem.en.alibaba.com / www.kevolt.en.alibaba.com
Why Choose Our Products
1. The product provides a 10-years warranty, because we are absolutelyconfident in the product!
2.Using A new grade A lithium iron phosphate cell, max 10000 Cycles @0.5C 80%DOD, you can scan the QR code official website to verify thetrue or false, trace the source!
3.Independent battery compartment structure design, triple structurereinforcement, to achieve super stability.

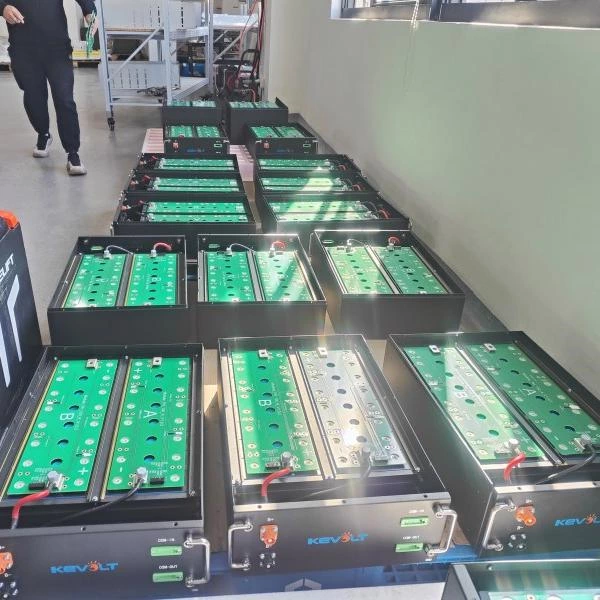

4.Using advanced technology such as laser welding and PCB process,simple, beautiful and durable.
5. Equipped with intelligent high voltage BMS, real-time monitoring ofvoltage, current, temperature, protect voltage and current stability,prevent short circuit, overcharge and overdischarge.
6.4.3-inch touch screen, larger screen, better water and dust resistanceand longer service life.
7. The WlFl function is configured, devices can be monitored remotelyanytime, anywhere.
8.Rack design, simple installation and space saving.
9.Compatible with 95% of brand inverters.
10.Support 15 devices in parallel with a maximum total capacity of215.04kWh.
11. Support OEM/ODM.
| 5.12kWh Module HV Rack Battery | |||
| Model | NSTR-5K-HV | ||
| Battery Module | 5.12kWh, 100Ah, 51.2V, 42.5kg, 355*567*150mm | ||
| Battery Type | LiFePO4 | ||
| Control box | 355*567*150mm，15kg, 204.8V~972.8V ,50A | ||
| Number Of Modules | 4 | 5 | 6 |
| Rated Energy | 20.48kWh | 25.6kWh | 30.72kWh |
| Suggested SOC | 20~100% | ||
| Normal Voltage | 204.8V | 256V | 307.2V |
| Maximum Current | 50A | ||
| Maximum Power | 10.24kW | 12.80kW | 15.36kW |
| Cycle Life | 6000 Cycles @25℃, 80%DOD | ||
| Operating Temperature | Charge: 0~50℃, Discharge: -20~60℃ | ||
| Net Weight (kg) | 185 | 227.5 | 270 |
| Dimensions (mm) | 567*355*830 | 567*355*1000 | 567*355*1170 |
| Installation Method | Rack Mounted | ||
| Remote Monitoring | WIFI | ||
| IP Grade | IP21 | ||
| Communication | RS232, RS485, CAN | ||
| Warranty | 10 Years | ||
